Hydraulikarmaturen Edelstahl

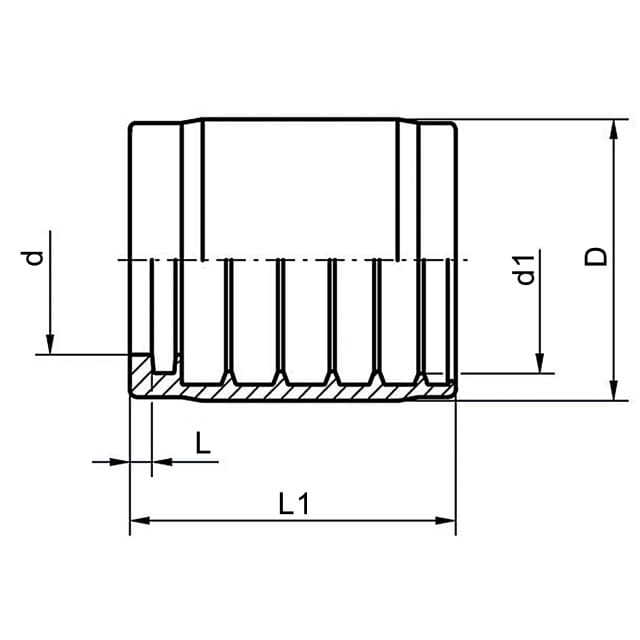

C-PF3-DN10 1SN/2SC/2SNK A

15,0mm

19,8mm

26,5mm

C-AGR R3/8" DN10 BSP 60° A

6,5mm

22mm

9,6mm

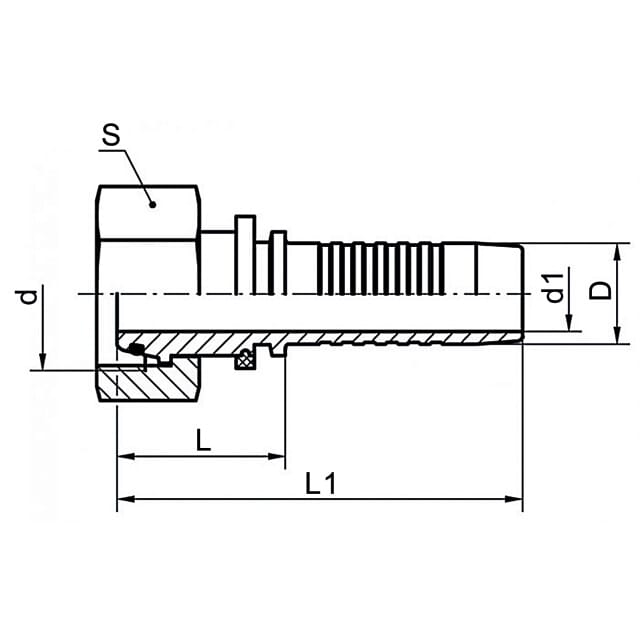

C-DKOL 08-L M14x1,5 DN06 A

M14x1,5

3,9mm

6,7mm

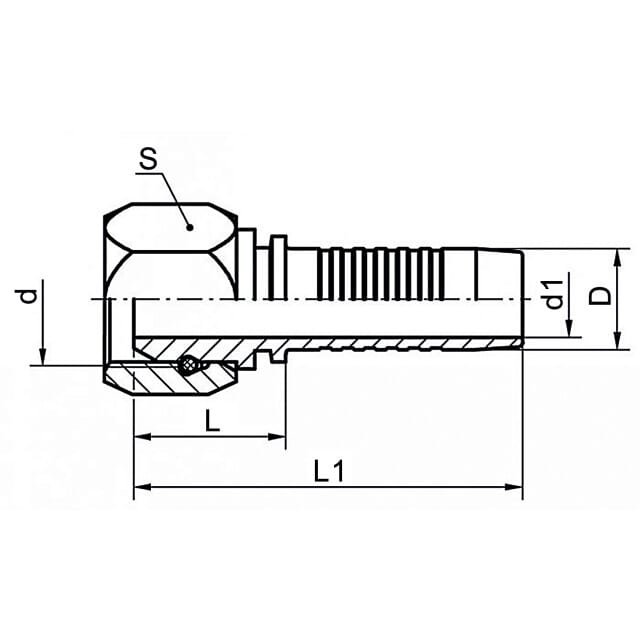

C-DKR 3/8" DN10 BSP 60° A

G3/8"

6,5mm

9,6mm

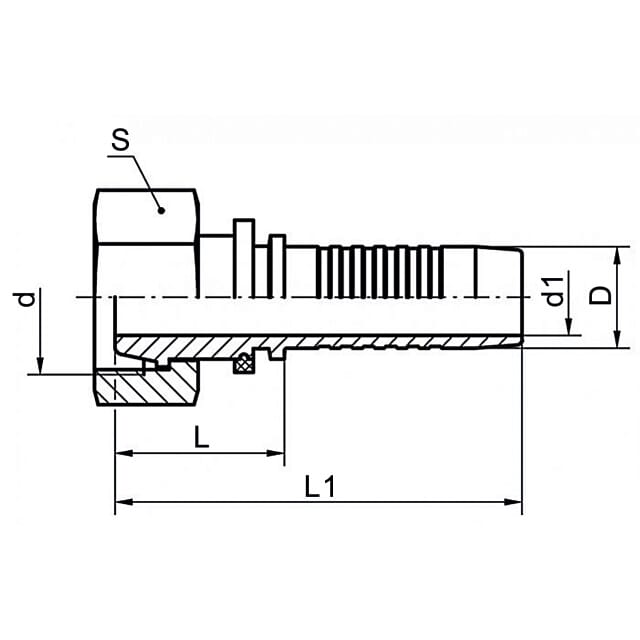

C-DKL 10-L M16x1,5 DN08 A

M16x1,5

5,4mm

8mm

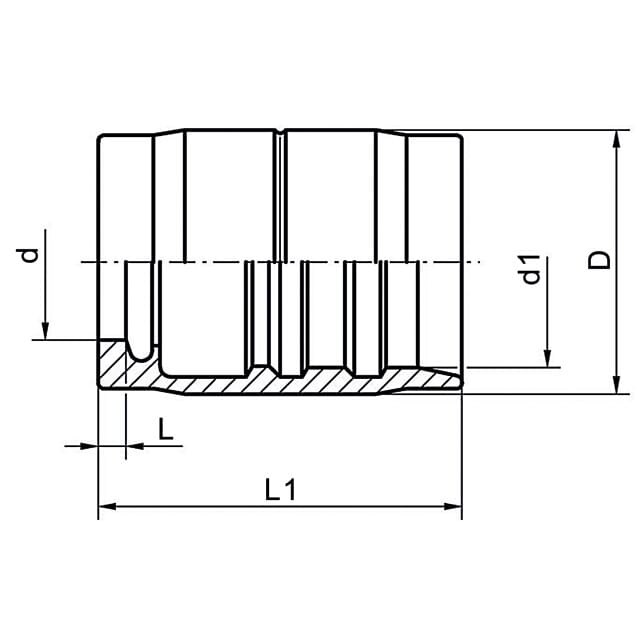

C-PF2-DN08 2TE/3TE A

13,0mm

17,2mm

22,3mm

C-DKOL 22-L M30x2 DN20 90°

C-DKJ 1/2-20 UNF DN06 90° A

-

-

-

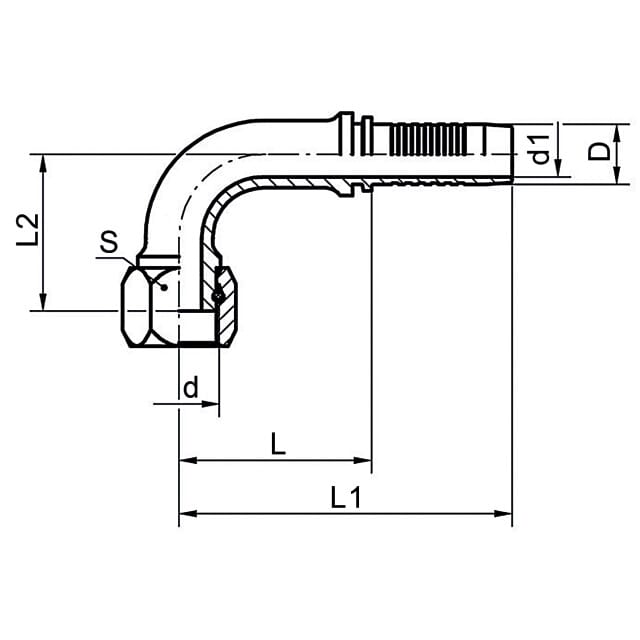

C-DKR-F 3/8" DN10 90° A

G3/8"

6,5mm

9,6mm

C-BES 08-S DN06 A

3,9mm

8

6,7mm

Fassung WFI DN12 1.4305

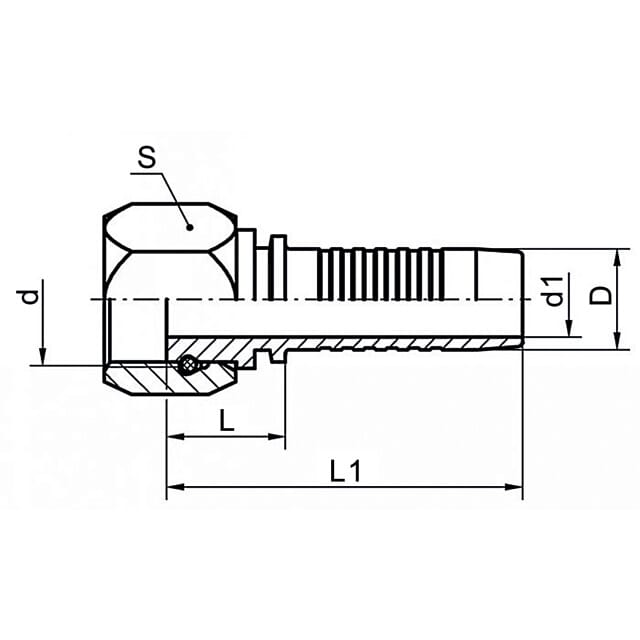

C-DKR-F 3/4" DN16 A

G3/4"

12,6mm

16mm

C-SFL3 1" 44,5mm 90° DN25 1.4571 P

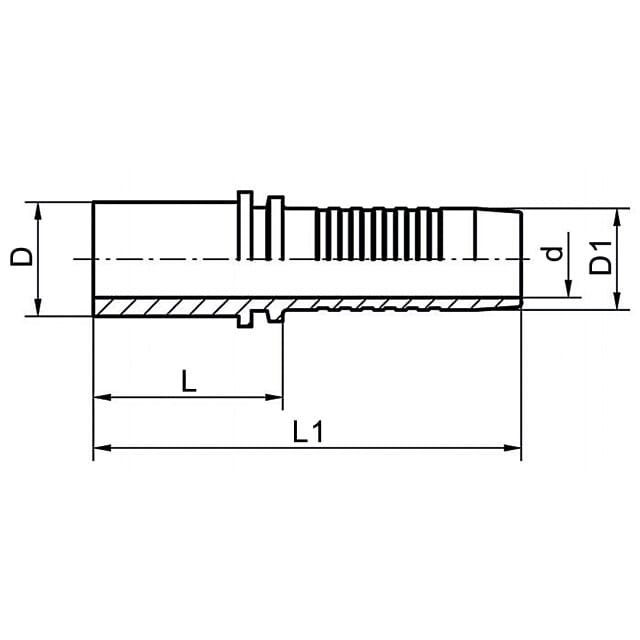

C-BEL 10-L DN08 A

5,4

10

8mm

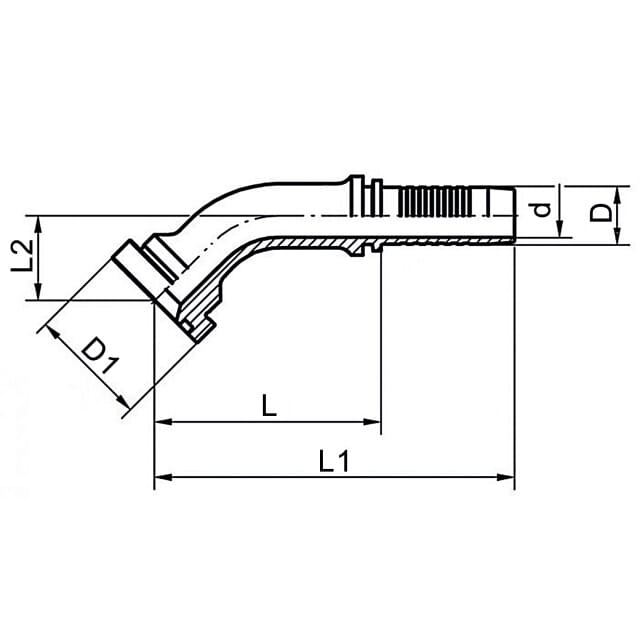

C-SFS6 1/2" 31,7mm 45° DN12 A

9,5mm

13mm

12

C-SFL6 2" 79,4mm 4SH/DN50 A

-

-

-

C-DKLL 28-L M38x1,5 DN25

C-DKL 08-L M14x1,5 DN06 90° A

M14x1,5

3,9mm

6,7mm

C-DKOS DN06 M14x1,5 6-S

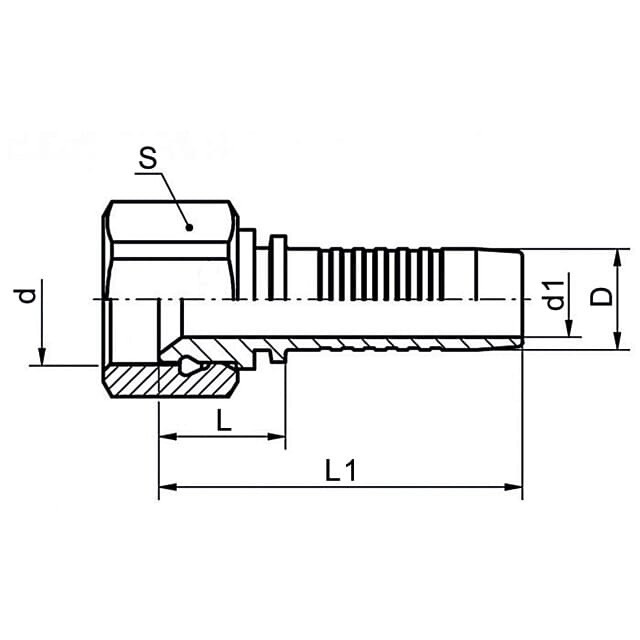

C-DKJ 1/2-20 UNF DN06 A

1/2"-20 UNF

3,9mm

6,7mm

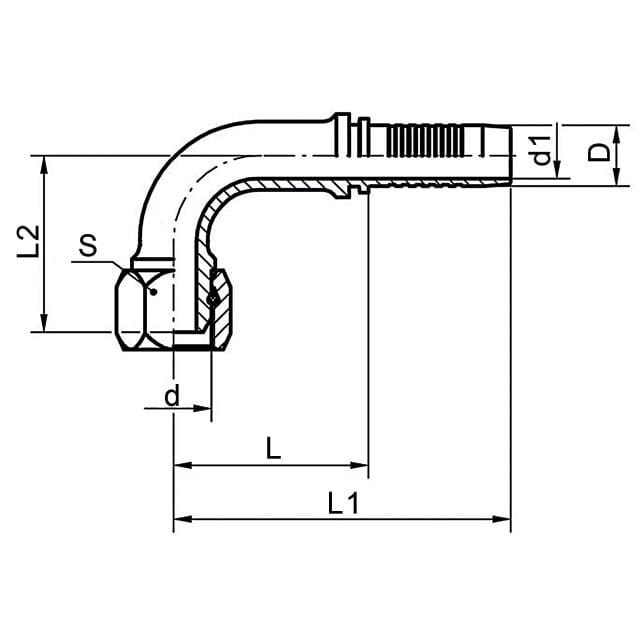

C-DKR 3/8" DN10 BSP 60°- 90° A

G3/8"

6,5mm

9,6mm

C-DKOS 12-S M20x1,5 DN10

C-DKOL 06-L M12x1,5 DN06 45° A

M12x1,5

3,9mm

6,7mm

C-AGN R1/4" NPT DN06 A

3,9

14

6,7
